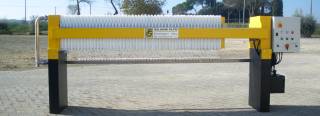

The QuickDry filter press is a semi-automatic machine.
The electric control automatically manages all of the filtration steps, but the discharge of the pressed sludge is done manually by the operator.
The structure is built in electro welded carbon steel and it includes all the devices necessary to control the filtration process.
The feeding of the slurry in a central position, while the discharge of the filtered liquid may be effected both by an opened channel or by a closed manifold.

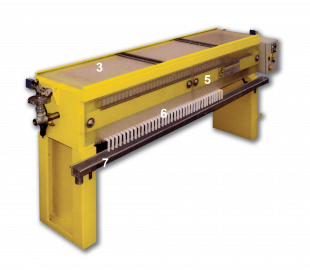

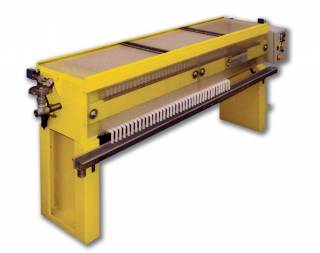

1 - Exclusive oil assisted end filtration control system
2 - Inlet manifold and contact parts in stainless steel
3 - Upper sliding protection
4 - Control panel with integrated pump and other functions
5 - Safety side protections and mud guards
6 - Polypropylene filter elements for high capacity
7 - Filtrate collection channel in stainless steel
The power supply system provides, depending on the cases, the use of pumps: diaphragm, piston, piston-diaphragm.
The plates are in polypropylene with a high-efficiency; the clothes are of a special type and they are selected on the ground of the filtration that must be carried out.

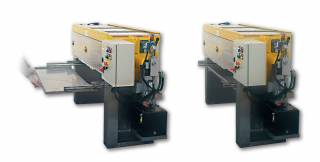

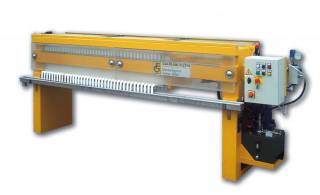

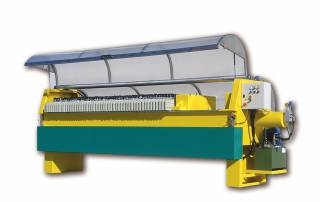

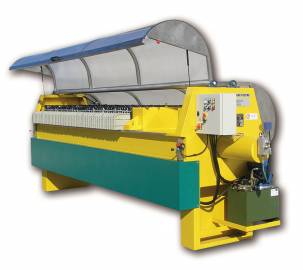

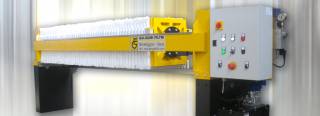

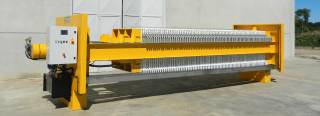

All dimensions 320, 440, 4959, 600, 800, 1000 are realized in the HD version with motorized hydraulic control unit and automatic pressure replenishing system.

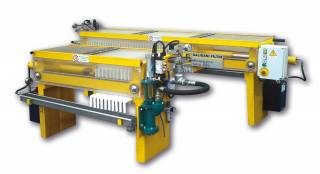

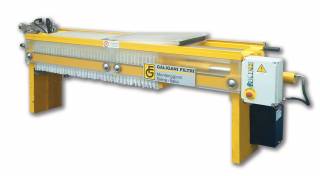

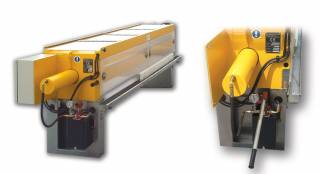

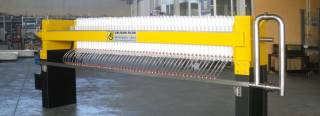

For particular applications or to contain costs, the QUICKDRY press filters can be built in the HMD version with manually controlled hydraulic unit and locking safety screw.
| Model | QUICKDRY 320 |
| Power | KW 1,1 |
| Panel thikness | 25 mm |
| B | 360 mm |
| F | 400 mm |
| L | 600 mm |
| R | 300 mm |
| S | 75 mm |
| H | 1000 mm |
| H max | 1700 mm |
| Plates | Volume | Filter surface | Weight | Model HD | Model HMD | ||
|---|---|---|---|---|---|---|---|
| N | Lt | m2 | Kg | A mm | T mm | A mm | T mm |
| 30 | 60 | 5,1 | 330-450 | 1710 | 2560 | ||
All the measures are indicative and not binding. Galigani Filtri reserves the right to modify at any time without notice.

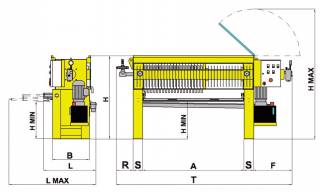

| Model | QUICKDRY 440 |
| Power | KW 1,1 |
| Panel thikness | 32 mm |
| B | 560 mm |
| F | 570 mm |
| L | 850 mm |
| L max | 1400 mm |
| R | 300 mm |
| S | 145 mm |
| H min | 550 mm |
| H | 1000 mm |
| H max | 1700 mm |
| Plates | Volume | Filter surface | Weight | Model HD | Model HMD | ||
|---|---|---|---|---|---|---|---|
| N | Lt | m2 | Kg | A mm | T mm | A mm | T mm |
| 20 | 100 | 6,4 | 530-730 | 1990 | 3150 | ||
| 40 | 200 | 12,8 | 670-1070 | 2890 | 4050 | ||
| 60 | 300 | 19,2 | 810-1410 | 3790 | 4950 | ||
| 30 | 150 | 9,6 | 600-900 | 1990 | 3150 | ||
| 50 | 250 | 16 | 740-1240 | 2890 | 4050 | ||
| 70 | 350 | 22,4 | 880-1580 | 3790 | 4950 | ||
All the measures are indicative and not binding. Galigani Filtri reserves the right to modify at any time without notice.
| Model | QUICKDRY 490x590 |
| Power | KW 1,1 |
| Panel thikness | 30 mm |
| B | 540 mm |
| F | 640 mm |
| L | 900 mm |
| L max | 1400 mm |
| R | 300 mm |
| S | 180 mm |
| H | 1250 mm |
| H max | 2050 mm |
| Plates | Volume | Filter surface | Weight | Model HD | Model HMD | ||
|---|---|---|---|---|---|---|---|
| N | Lt | m2 | Kg | A mm | T mm | A mm | T mm |
| 70 | 476 | 33,6 | 1800-2700 | 4200 | 5500 | ||
All the measures are indicative and not binding. Galigani Filtri reserves the right to modify at any time without notice.
| Model | QUICKDRY 600 |
| Power | KW 3 |
| Panel thikness | 30 mm |
| B | 640 mm |
| F | 900 mm |
| L | 1450 mm |
| L max | 2100 mm |
| R | 300 mm |
| S | 210 mm |
| H min | 700 mm |
| H | 1650 mm |
| H max | 2300 mm |
| Plates | Volume | Filter surface | Weight | Model HD | Model HMD | ||
|---|---|---|---|---|---|---|---|
| N | Lt | m2 | Kg | A mm | T mm | A mm | T mm |
| 40 | 317 | 25 | 1600-2240 | 3080 | 4700 | ||
| 60 | 476 | 37,5 | 1900-2860 | 4280 | 5900 | ||
Special measures on request to be examined by our technical department
All the measures are indicative and not binding. Galigani Filtri reserves the right to modify at any time without notice.

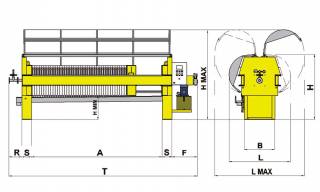

| Model | QUICKDRY 800 |
| Power | KW 3 |
| Panel thikness | 30 mm |
| B | 820 mm |
| F | 900 mm |
| L | 1700 mm |
| L max | 2300 mm |
| R | 300 mm |
| S | 260 mm |
| H min | 600 mm |
| H | 1800 mm |
| H max | 2450 mm |
| Plates | Volume | Filter surface | Weight | Model HD | Model HMD | ||
|---|---|---|---|---|---|---|---|
| N | Lt | m2 | Kg | A mm | T mm | A mm | T mm |
| 40 | 587 | 44 | 2850-4050 | 3480 | 5200 | ||
| 60 | 880 | 66 | 3450-5250 | 4680 | 6400 | ||
Special measures on request to be examined by our technical department
All the measures are indicative and not binding. Galigani Filtri reserves the right to modify at any time without notice.
